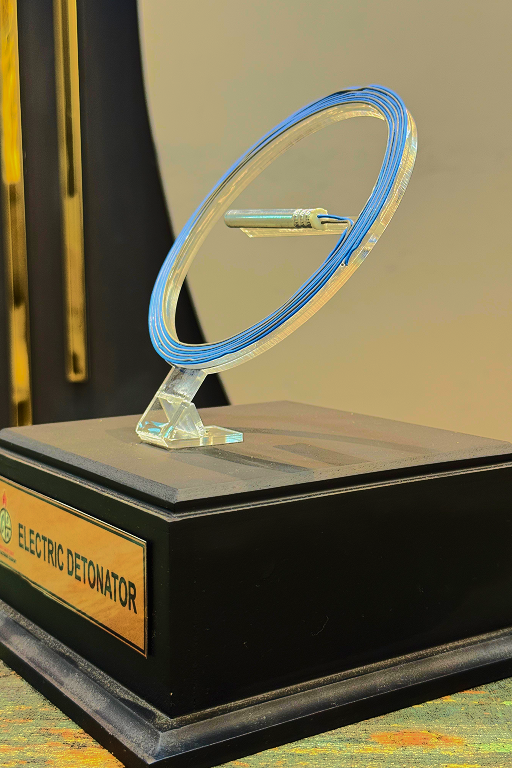

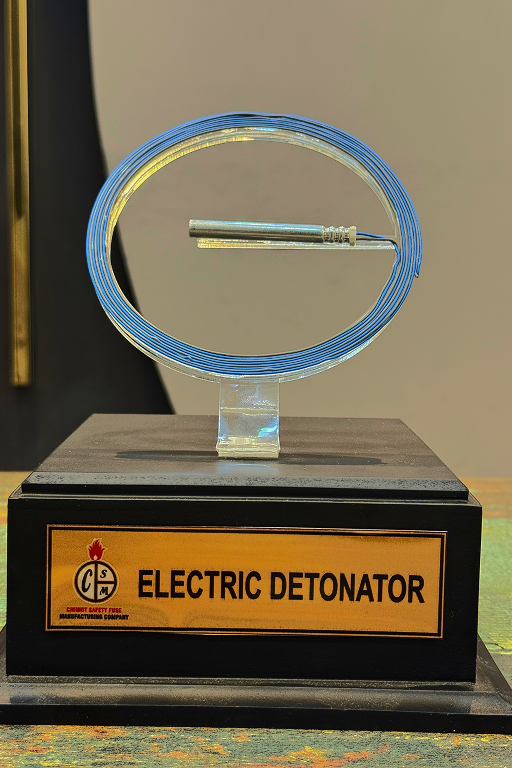

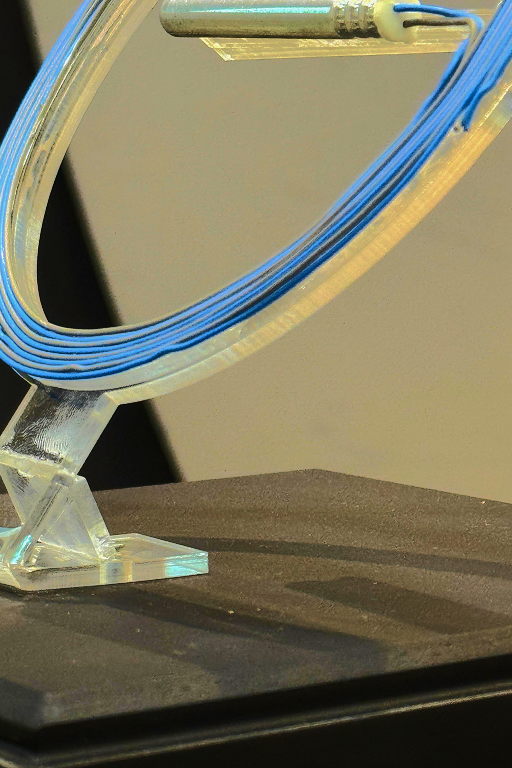

Electric Detonators No.8

It is high power detonator and initiated by an electric impulse. It can reliably initiate all explosives & detonating cords applicable for blasting work in well mining or in open pit, digging tunnels, road construction, building water conservancy project etc. Electric detonators are widely used to initiate blast sequence but are rarely now used inside the blast hole themselves except seismic prospecting. Electric energy is introduced into the detonator from out source via a primary circuit wire through detonator leads.

Detail

Specification

Physical Appearance

Aluminum Capsule along connected 2 leg wires

Diameter/Tube Length

6.95mm/64 - 70mm

Leg Wire Length

3,5,7,& 10 meter (as per requirement)

Sensitivity

Electric Impuls

Initiation Power

No.8

Resistance of leg wire

0.05 - 0.055ohm

Resistance of fuse head

1 - 1.2 ohm

Safe current

0.50-amp

Firing Current

1-amp

Friction sensitivity

2-kg

Impact sensitivity

20cm/1-kg

Performance

99%

Packing

200 no's in one card board box

Shelf Life

12 - months

Storage

Store in dry and well-ventilated conditions.
